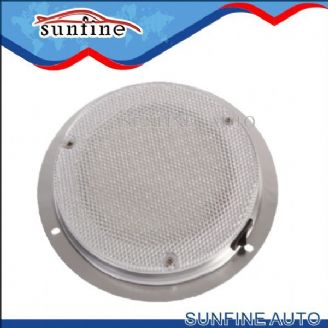

5-1/2" (140mm) LED Cargo Light

5-1/2" (140mm) LED Cargo Light
* Aluminum base, available in sand blasted + anodized finish or white powder coated finish
* Clear PC lens is specially designed to vastly distribute the lighting from LEDs to a wide
beam angle of no less than 120 , ideal for interior use inside cargo truck or box trailer
* Lighting color by LEDs in neutral white color 4,500~5,000K
* SMD3528 LEDs, long life span up to 50,000hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version by special order
SF No. Finish Input Lighting ColorNo. ofCurrent Draw Luminous

              Voltage              LED s   at 13.8V    Intensity

SFA41340-1Sand Blastand 12 VNeutral White4,500~5,000K 60 400mA 350 lm
SFA41340-2WhitePowder 12 VNeutral White4,500~5,000K 60 400mA 350 lm

 LED Portable Utility Light
4.5'' LED Portable Utility Light, Battery Operated
New style LED Portable Utility Light; operated by 3 x AAA batteries; two pieces of strong magnet
enclosed at the bottom help to hold the light firmly to any surfaces of steel material, convenient
and ideal for various applications as a temporary lighting ,wherever a light is needed
Clear PC Lens featured with StarView lens pattern is uniquely designed to vastly distribute the
lighting illuminated from white LEDs to a wide beam angle of no less than 120
White plastic housing added with UV inhibitor to resist color fading, rocker switch,
Circuit board coated with conformal coating to resist moisture, corrosion and vibration
3 x AAA battery running time no less than ( ) 10 hours
SF No. Finish Light Color No. of LEDs LED Type Luminous Intensity
SFA41226-1 White Cool White 24 P4 120lm
SFA41226-2 Black Cool White 24 P4 120lm
SFA41226-3 Silver Cool White 24 P4 120lm

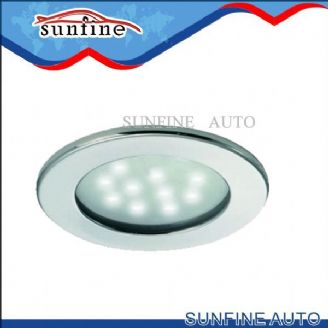

LED Dome Light
LED Dome Light
* S.S.304 Housing
SF No. Voltage Power Size
SFA40119-1 12V 4W 4''
SFA40119-2 24V 5W 6''

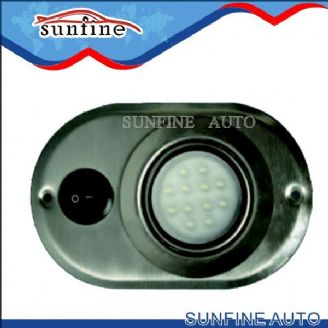

LED Surface Mount Oblong Cabin

3" x 4.8" LED Surface Mount Oblong Cabin Light

*Low Profile LED Surface Mount Cabin Light is particularly suitable for applications where the depth of cut-out hole is limited,ideal for cabin and compartment
cut-out hole is limited, ideal for cabin and compartment
* Brushed S.S.304 housing, frosted plastic lens. Lens is designed to vastly distribute the light
illuminated from white LEDs * Rated for 12V, tested to 13.8V
* Built-in switch on the top, easy to turn ON and OFF
* Circuit board completely sealed in silicone to resist water, corrosion and vibration
* Lighting color available in Cool White and Warm White

       Finish   Input   Lighting    No. of LED Current Draw   Lumen
SF No.           Voltage Color        LEDs Type at 13.8V     Intensity

SFA40172-1 Brushed Stainless 12 V Cool White 18 5 mm 120 mA 54 lm
SFA40172-2 Brushed Stainless 12 V Warm White 18 5 mm 120 mA 54 lm

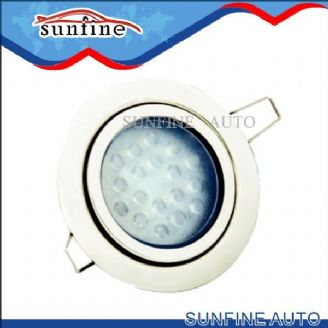

2"LED Down Light, Low Profile

2"LED Down Light, Low Profile
* Low Profile LED Down light is particularly suitable for applications where the depth of cut-out hole is limited,
ideal for cabin and compartment
* Highly polished 304 stainless steel, TiN (Titanium Nitrite) plated brass, or white powder coated aluminum
down light with frosted plastic lens. Lens is designed to vastly distribute the light illuminated from white LEDs
* Circuit board completely sealed in silicone to resist water, corrosion and vibration
* Lighting color available in Cool White and Warm White
* New introduction of SMD LEDs for this light, much brighter!
* Rated for 12V, tested to 13.8V

SF No.Finish Input Light ColorNo. ofLED TypeCurrentLuminous

            Voltage            LEDs       Draw at         Intensity

SFA40170-1 Stainless  12 V Cool White 18 5 mm 120 mA 90 lm
SFA40170-2 Stainless  12 V Warm White 18 5 mm 120 mA 72 lm
SFA40170-3 Stainless  12 V Netural White 9 SMD 5050 150 mA 120 lm
SFA40170-10 Stainless 12 V Blue 18 SMD 5050 150 mA
SFA40170-11 Stainless 12 V Red 18 SMD 5050 150 mA
SFA40170-12 Stainless 12 V Netural White 9 SMD 2835 170 mA 190 lm
SFA40170-13 Stainless 12 V Blue 18 SMD 2835 360 mA
SFA40170-14 Stainless 12 V Red 18 SMD 2835 360 mA

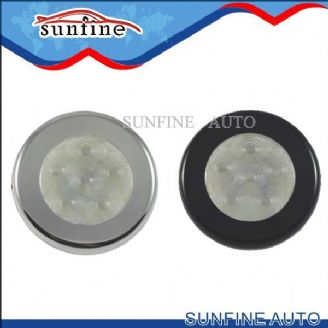

3"LED Recessed Mount Light

3"LED Recessed Mount Light
* This Recessed Mount Light is great for cabin and compartment in boat and RV, and other suitable applications
* Chrome plated or black finish bezel performs a shiny look.
* Clear PC lens, engineered lens optics provides a uniform and comfortable lighting beam illuminated from white LED
* Circuit board completely sealed in epoxy to resist water, corrosion and vibration
* Lighting color available in single color Cool White, Warm White and Red
* Rated for 12V, tested to 13.8V

SFNo.FinishInputVoltageLightColorNo.ofLEDsLEDTypeCurrentDrawat13.8VLuminousIntensity

SFA40175-1 Chrome Plated 12 V Cool White 6     P 4       40 mA 30 lm
SFA40175-2 Chrome Plated 12 V Warm White 6     P 4       40 mA 30 lm
SFA40175-3 Chrome Plated 12 V Red        6     P 4      100 mA 30 lm
SFA40175-4 Black Finish  12 V Cool White 6     P 4       40 mA 30 lm
SFA40175-5 Black Finish  12 V Warm White 6     P 4       40 mA 30 lm
SFA40175-6 Black Finish  12 V Red        6     P 4      100 mA 30 lm

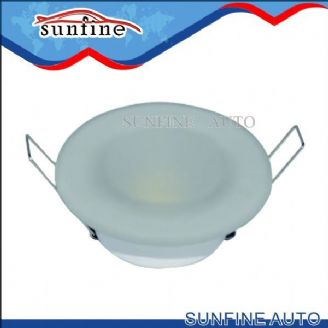

LED Ceiling Light 2.2'' & 3.2'

LED Ceiling Light 2.2'' & 3.2''
* Frosted glass lens hides the LEDs and outputs uniform flood lighting
* Steel powder coated white housing
* Ideal for interior ceiling in RVs and boats
* Up-to-date technology of super bright SMD LEDs features a comfortable Warm White lighting color
* Rated for 12V, tested to 13.8V

SFNo.FinishInputVoltageLightColorNo.ofLEDsLEDTypeCurrentDrawat13.8VLuminousIntensity

SFA41224-1 Frosted Glass 12 V Warm White 9 SMD 5050 0.16 A 150 lm
SFA41224-2 Frosted Glass 12 V Warm White 24 SMD 5050 0.44 A 400 lm

LED Porch Light

LED Porch Light
* Innovative LED version porch light features foot-print mount holes, ideal for retro-fit or
replacement of the conventional porch lights on RVs * CSA certificated
* SMD5050 LEDs of up to date technology, super bright and long life span up to 50,000hours
* Circuit board completely sealed by soft epoxy to resist water and vibration, IP64 rating
* Rated for 12V, tested to 13.8V * Also available in 24V version by special order

SFNo.InputVoltageNo.ofLEDsLightingColorColorTemp CurrentDrawat13.8VLuminousIntensity
SFA41225 12 V 18 Neutral White ~4,500 K 360 mA 300 lm

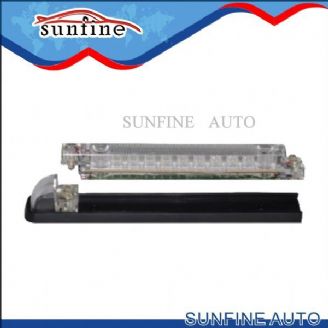

EZ Connect Utility Strip Light

EZ Connect Utility Strip Light LED
* This surface mount Utility Strip Light features unique snap-to-fit terminals that can connect multiple units
together for a desired length, maximum 6 units with one power connector.
* Great for use in cabin, locker, engine compartment or other interior and exterior.
* Detachable terminals are perfectly made to resist corrosion and moisture
* Black rubber gasket included for mounting to all surfaces; ready to install for single unit use, and cut-to-fit
(cut along the slot on the gasket) for connecting multiple units
* 9 LEDs of super flux (P4) type, super bright
* LED circuitry is completely potted by epoxy to ensure permanent and water proof seal
* Two bare end wires of 6 (15mm) length, separate lead wire and ground wire
* Available in all colors in clear lens
* Rated for 12V, tested to 13.8V

SF No. Description Input Voltage Lighting Color Lens Color Nos. of LEDs Current Draw                                                               (mA)     at 13.8V
SFA41270-1 EZ Connect Strip Light Clear 12 V Cool White Clear 9 60 mA
SFA41270-2 EZ Connect Strip Light Blue 12 V Blue Clear 9 60 mA
SFA41270-3 EZ Connect Strip Light Green 12 V Green Clear 9 60 mA

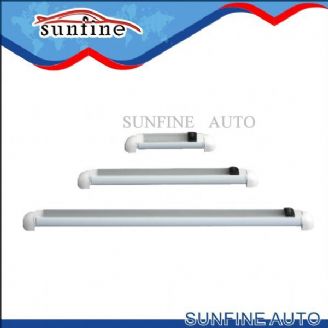

LED Rail Light

LED Rail Light
* This series of the lights feature rotating function to adjust the light to any desired direction, reinforced plastic
end mount tightly holds the light in place
* Aluminum extrusion rail, finishes available in powder coated White, painted Black and Silver
* Frosted plastic lens with featured lens pattern to enhance uniform lighting distribution
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration
* Lighting color available in Cool White, optional Warm White color or Nav. version (red night vision) of
White/Red LED configuration available by special order
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Super bright 5mm LED, long life span up to 100,000hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version (special order only
minimum may apply)

SF No.LengthFinishInputLight ColorNo. ofLEDCurrent DrawLuminous

       Inch mm     Voltage       LEDs Type at 13.8V     Intensity

SFA41240-1 6 150  White  12 V Cool White 12 5 mm 80 mA 48 lm
SFA41240-2 6 150  Black  12 V Cool White 12 5 mm 80 mA 48 lm
SFA41240-3 6 150  Silver 12 V Cool White 12 5 mm 80 mA 48 lm
SFA41241-1 12 300 White  12 V Cool White 24 5 mm 160 mA 96 lm
SFA41241-2 12 300 Black  12 V Cool White 24 5 mm 160 mA 96 lm
SFA41241-3 12 300 Silver 12 V Cool White 24 5 mm 160 mA 96 lm
SFA41242-1 18 450 White  12 V Cool White 36 5 mm 240 mA 144 lm
SFA41242-2 18 450 Black  12 V Cool White 36 5 mm 240 mA 144 lm
SFA41242-3 18 450 Silver 12 V Cool White 36 5 mm 240 mA 144 lm
