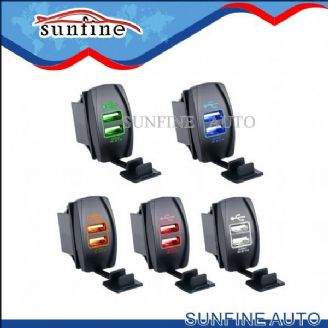

Switch size 2 Port USB

Input:DC12V/24V

Input:DC12/24V

Output:5v 2.4a

Input:DC 12/24V

Output:10-16v

Rocker Switch with 1 Led, SF-A8 Cover    DC 20A@12V  DC 10A@24V

Aluminum Rocker Switch Panel 12V/24V Waterproof IP68

5-1/2" (140mm) LED Cargo Light
* Aluminum base, available in sand blasted + anodized finish or white powder coated finish
* Clear PC lens is specially designed to vastly distribute the lighting from LEDs to a wide
beam angle of no less than 120 , ideal for interior use inside cargo truck or box trailer
* Lighting color by LEDs in neutral white color 4,500~5,000K
* SMD3528 LEDs, long life span up to 50,000hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version by special order
SF No. Finish Input Lighting ColorNo. ofCurrent Draw Luminous

              Voltage              LED s   at 13.8V    Intensity

SFA41340-1Sand Blastand 12 VNeutral White4,500~5,000K 60 400mA 350 lm
SFA41340-2WhitePowder 12 VNeutral White4,500~5,000K 60 400mA 350 lm

4.5'' LED Portable Utility Light, Battery Operated
New style LED Portable Utility Light; operated by 3 x AAA batteries; two pieces of strong magnet
enclosed at the bottom help to hold the light firmly to any surfaces of steel material, convenient
and ideal for various applications as a temporary lighting ,wherever a light is needed
Clear PC Lens featured with StarView lens pattern is uniquely designed to vastly distribute the
lighting illuminated from white LEDs to a wide beam angle of no less than 120
White plastic housing added with UV inhibitor to resist color fading, rocker switch,
Circuit board coated with conformal coating to resist moisture, corrosion and vibration
3 x AAA battery running time no less than ( ) 10 hours
SF No. Finish Light Color No. of LEDs LED Type Luminous Intensity
SFA41226-1 White Cool White 24 P4 120lm
SFA41226-2 Black Cool White 24 P4 120lm
SFA41226-3 Silver Cool White 24 P4 120lm

LED Dome Light
* S.S.304 Housing
SF No. Voltage Power Size
SFA40119-1 12V 4W 4''
SFA40119-2 24V 5W 6''

3" x 4.8" LED Surface Mount Oblong Cabin Light

*Low Profile LED Surface Mount Cabin Light is particularly suitable for applications where the depth of cut-out hole is limited,ideal for cabin and compartment
cut-out hole is limited, ideal for cabin and compartment
* Brushed S.S.304 housing, frosted plastic lens. Lens is designed to vastly distribute the light
illuminated from white LEDs * Rated for 12V, tested to 13.8V
* Built-in switch on the top, easy to turn ON and OFF
* Circuit board completely sealed in silicone to resist water, corrosion and vibration
* Lighting color available in Cool White and Warm White

       Finish   Input   Lighting    No. of LED Current Draw   Lumen
SF No.           Voltage Color        LEDs Type at 13.8V     Intensity

SFA40172-1 Brushed Stainless 12 V Cool White 18 5 mm 120 mA 54 lm
SFA40172-2 Brushed Stainless 12 V Warm White 18 5 mm 120 mA 54 lm

2"LED Down Light, Low Profile
* Low Profile LED Down light is particularly suitable for applications where the depth of cut-out hole is limited,
ideal for cabin and compartment
* Highly polished 304 stainless steel, TiN (Titanium Nitrite) plated brass, or white powder coated aluminum
down light with frosted plastic lens. Lens is designed to vastly distribute the light illuminated from white LEDs
* Circuit board completely sealed in silicone to resist water, corrosion and vibration
* Lighting color available in Cool White and Warm White
* New introduction of SMD LEDs for this light, much brighter!
* Rated for 12V, tested to 13.8V

SF No.Finish Input Light ColorNo. ofLED TypeCurrentLuminous

            Voltage            LEDs       Draw at         Intensity

SFA40170-1 Stainless  12 V Cool White 18 5 mm 120 mA 90 lm
SFA40170-2 Stainless  12 V Warm White 18 5 mm 120 mA 72 lm
SFA40170-3 Stainless  12 V Netural White 9 SMD 5050 150 mA 120 lm
SFA40170-10 Stainless 12 V Blue 18 SMD 5050 150 mA
SFA40170-11 Stainless 12 V Red 18 SMD 5050 150 mA
SFA40170-12 Stainless 12 V Netural White 9 SMD 2835 170 mA 190 lm
SFA40170-13 Stainless 12 V Blue 18 SMD 2835 360 mA
SFA40170-14 Stainless 12 V Red 18 SMD 2835 360 mA
