Categories

Dome Light

SEE ALL PRODUCTS
LED Dome Light
LED Dome Light
* S.S.304 Housing
SF No. Voltage Power Size
SFA40119-1 12V 4W 4''
SFA40119-2 24V 5W 6''

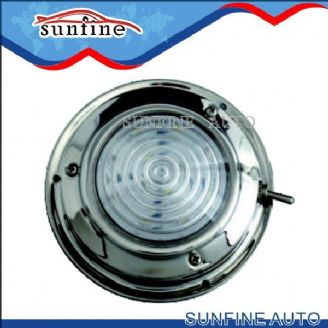

5-1/2"& 7"LED Dome Light

5-1/2"& 7"LED Dome Light
* Highly polished 304 stainless steel LED dome light, also available in finishes of TiN
(Titanium Nitrite) plated brass, or white powder coated aluminum.
* Clear PC lens is specially designed to vastly distribute the lighting illuminated from white
LEDs to a wide beam angle of no less than 120
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration
* Lighting color by LEDs available in single color Warm White or Cool White, as well as Nav.
version (red night vision) of White/Red LED configuration
* Super bright 5mm LEDs, long life span up to 100,000hours
* Rated for 12V, tested to 13.8V

       Finish       Input   Lighting    No. of LED Current Draw Lumen
SF No.               Voltage Color        LEDs Type at 13.8V      Output
SFA40141-1 Stainless 12 V    Cool White 12 5 mm 80 mA 36 lm
SFA40141-2 TiN Brass 12 V    Cool White 12 5 mm 80 mA 36 lm
SFA40141-3 White Alum12 V    Cool White 12 5 mm 80 mA 36 lm
SFA40141-4 Stainless 12 V    Warm White 12 5 mm 80 mA 36 lm
SFA40141-5 TiN Brass 12 V    Warm White 12 5 mm 80 mA 36 lm
SFA40141-6 White Alum12 V    Warm White 12 5 mm 80 mA 36 lm

5-1/2" LED Dome Light Saturn

5-1/2" LED Dome Light Saturn
* New contemporary design, highly polished 304 stainless steel LED dome light, also available
in finishes of TiN (Titanium Nitrite) plated brass, or white powder coated aluminum
* Clear PC lens featured with StarView lens pattern is uniquely designed to vastly distribute
the lighting illuminated from white LEDs to a wide beam angle of no less than 120
* Ideal for interior use in boats, RV and other applications
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration
* Lighting color by LEDs available in single color Warm White, as well as Nav. version
(red night vision) of White/Red LED configuration.
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Super flux (P4) type of LEDs, super bright, long life span up to 100,000hours
* Rated for 12V, tested to 13.8V

        Finish   Input   Lighting    No. of LED Current Draw Lumen       CCT.
SF No.         Voltage Color        LEDs Type at 13.8V       Intensity

SFA40153-1 Stainless 12 V Netural White 30 P4 180 mA 150 lm ~4200K
SFA40153-2 Stainless 12 VNeturalWhite/Red 21W/9R P4 140/150mA 105/45 lm NW/RED
SFA40153-5 White Alum 12 V Netural White 30 P4 180 mA 150 lm ~4200K
SFA40153-6 White Alum 12 V Netural 21W/9R P4 140/150mA 105/45 lm NW/RED
SFA40153-7 Stainless 12 V Netural White 30 SMD 200 mA 180 lm ~4200K
SFA40153-8 Stainless 12 V Netural 21W/9R SMD 140/150mA 126/54 lm NW/RED

LED Dome Light White Plastic

5-1/2" LED Dome Light White Plastic, Low Profile
* Low profile stylish LED dome light; ideal for interior use in Boat, RV and other applications
* White plastic housing added with UV inhibitor to resist color fading, rocker switch; optional
housing also available in Black or Silver color by special order
* Clear PC Lens featured with StarView lens pattern is uniquely designed to vastly distribute
the lighting illuminated from white LEDs to a wide beam angle of no less than 120
* Concealed fastening holes, install easily
* Available in No Switch model
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration
* Lighting color by LEDs available in single color Warm White, as well as Nav. version
(red night vision) of White/Red LED configuration.
* Color Temperature: Warm White=4,000~4,500K, Cool White=7,000~8,000K
* Super flux (P4) type LEDs, super bright, long life span up to 100,000hours
* Rated for 12V, tested to 13.8V
* Also available in 24V version (special order only - minimum may apply)

       Finish   Input   Lighting    No. of LED Current Draw   Lumen   CCT.
SF No.         Voltage  Color        LEDs Type at 13.8V      Intensity
SFA40155-1 w/Switch 12 V Netural White 30 P4 180 mA 150 lm ~4200K
SFA40155-2 w/Switch 12 VNeturalWhite/Red 21W/9R P4 140/150mA 105/45 lm ~4200K
SFA40155-3 w/o Switch 12 V Netural White 30 P4 180 mA 150 lm NW/RED
SFA40155-4 w/o Switch 12 V NeturalWhite/Red21W/9R P4 140/150mA 105/45 lm NW/RED
SFA40155-6 w/Switch 12 V Netural White 30 SMD 200 mA 180 lm ~4200K
SFA40155-7 w/Switch 12 VNeturalWhite/Red21W/9R SMD 140/150mA 126/54 lm ~4200K
SFA40155-8 w/o Switch 12 V Netural White 30 SMD 200 mA 180 lm NW/RED
SFA40155-9 w/o Switch 12 VNeturalWhite/Red21W/9R SMD 140/150mA 126/54 lm NW/RED

5 -1/2" & 7" LED Dome Light

5 -1/2" & 7" LED Dome Light
* Highly polished 304 stainless steel LED dome light, also available in finishes of TiN (Titanium Nitrite) plated brass,
or white powder coated aluminum.
* Clear PC lens is specially designed to vastly distribute the lighting illuminated from white LEDs to a wide
beam angle of no less than 120
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration
* Lighting color by LEDs available in single color Warm White or Cool White, as well as Nav. version
(red night vision) of White/Red LED configuration
* Super bright 5mm LEDs, long life span up to 100,000hours
* Rated for 12V, tested to 13.8V

SF No.Size (Base O.D.)FinishInputLighting ColorNo. ofLED TypeCurrentLuminous

        mm Inch              Voltage             LED      Drawat 13.8V Intensity

SFA40147-1 140 5-1/2 Stainless 12 V Cool White 18 5 mm 120 mA 54 lm
SFA40147-2 140 5-1/2 Stainless 12 V Warm White 18 5 mm 120 mA 54 lm
SFA40147-3 140 5-1/2 Stainless 12 V Cool White/Red 18W/9R 5 mm 120/60 54/15 lm
SFA40147-4 140 5-1/2 TiN Brass 12 V Cool White 18 5 mm 120 mA 54 lm
SFA40147-5 140 5-1/2 TiN Brass 12 V Warm White 18 5 mm 120 mA 54 lm
SFA40147-6 140 5-1/2 TiN Brass 12 V Cool White/Red 18W/9R 5 mm 120/60 54/15 lm
SFA40147-7 140 5-1/2 White Alum 12 V Cool White 18 5 mm 120 mA 54 lm
SFA40147-8 140 5-1/2 White Alum 12 V Warm White 18 5 mm 120 mA 54 lm
SFA40147-9 140 5-1/2 White Alum 12 V Cool White/Red 18W/9R 5 mm 120/60 54/15 lm
SFA40147-10 140 5-1/2 Stainless 12 V Warm White 36 SMD 220 mA 180 lm
SFA40147-11 140 5-1/2 White Alum 12 V Warm White 36 SMD 220 mA 180 lm
SF40149-1 178 7 Stainless 12V Cool White 24 5MM 160 mA 72 lm
SFA40149-2 178 7 Stainless 12 V Warm White 24 5 mm 160 mA 72 lm
SFA40149-3 178 7 Stainless 12 V Cool White/Red 24W/12R 5 mm 160/80 72/20 lm
SFA40149-4 178 7 TiN Brass 12 V Cool White 24 5 mm 160 mA 72 lm
SFA40149-5 178 7 TiN Brass 12 V Warm White 24 5 mm 160 mA 72 lm
SFA40149-6 178 7 TiN Brass 12 V Cool White/Red 24W/12R 5 mm 160/80 72/20 lm
SFA40149-7 178 7 White Alum 12 V Cool White 24 5 mm 160 mA 72 lm
SFA40149-8 178 7 White Alum 12 V Warm White 24 5 mm 160 mA 72 lm
SFA40149-9 178 7 White Alum 12 V Cool White/Red 24W/12R 5 mm 160/80 72/20 lm
SFA40149-10 178 7 Stainless 12 V Warm White 36 SMD 220 mA 180?lm
SFA40149-11 178 7 White Alum 12 V Warm White 36 SMD 220 mA 180?lm
SFA40149-12 178 7 Stainless 12 V Warm White/Red 36 SMD 150/60 120/15 lm
SFA40149-13 178 7 White Alum 12 V Warm White/Red 36 SMD 150/60 120/15 lm

DOME LIGHT
4-1/2"
Dome Light Xenon
* Highly polished 304 stainless steel, brass lacquered, TiN plated (golden color) over brass, or white powder coated
* Heavy duty clear Fresnel patterned glass lens is designed to flood desired area
* 2 way toggle switch for easy operation
* G4 Xenon bulb 10W 12V; Life time no less than 2,000 hours
SF No. Base Diameter Finish            Bulb Type Power Consumption
SFA40187-1 4-1/2 TiN Plated, Golden color G4, Xenon, 12V 10W 10 W
SFA40187-2 4-1/2 Stainless Steel          G4, Xenon, 12V 10W 10 W
SFA40187-3 4-1/2 Brass Lacquered          G4, Xenon, 12V 10W 10 W
SFA40187-4 4-1/2 White Powder Coated      G4, Xenon, 12V 10W 10 W
5-1/2"& 7"Dome Light Xenon

5-1/2"& 7"Dome Light Xenon
* Highly polished 304 stainless steel, brass lacquered, TiN plated (golden color) over brass, or white powder coated
* Heavy duty clear Fresnel patterned glass lens is designed to flood desired area
* 3 way rocker switch configured for High-Low lighting (High=2 bulbs ON, Low=1 bulb ON), Nav/Dome version is also available
* 2 of G4 Xenon bulb, each 10W at 12V. Life expectancy no less than 2,000 hours

SF No.     Base Dia.    Finish      Version   Bulb Type

SFA40188-1 5-1/2” TiN Plated High-Low 2X G4, Xenon, 12V 10W
SFA40188-2 5-1/2” Stainless Steel High-Low 2X G4, Xenon, 12V 10W
SFA40188-3 5-1/ 2” Brass Lacquered High-Low 2X G4, Xenon, 12V 10W
SFA40188-4 5-1/ 2” White Powder High-Low 2X G4, Xenon, 12V 10W
SFA40188-5 5-1/ 2” TiN Plated Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40188-6 5-1/ 2” Stainless Steel Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40188-7 5-1/ 2” Brass Lacquered Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40188-8 5-1/ 2” White Powder Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40190-1 7”      TiN Plated High-Low 2X G4, Xenon, 12V 10W
SFA40190-2 7”      Stainless Steel High-Low 2X G4, Xenon, 12V 10W
SFA40190-3 7”      Brass Lacquered High-Low 2X G4, Xenon, 12V 10W
SFA40190-4 7”      White Powder High-Low 2X G4, Xenon, 12V 10W
SFA40190-5 7”      TiN Plated Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40190-6 7”      Stainless Steel Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40190-7 7”      Brass Lacquered Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
SFA40190-8 7        White Powder Nav./Dome 2X G4, Xenon, 1 White/1 Red=10W/10W
