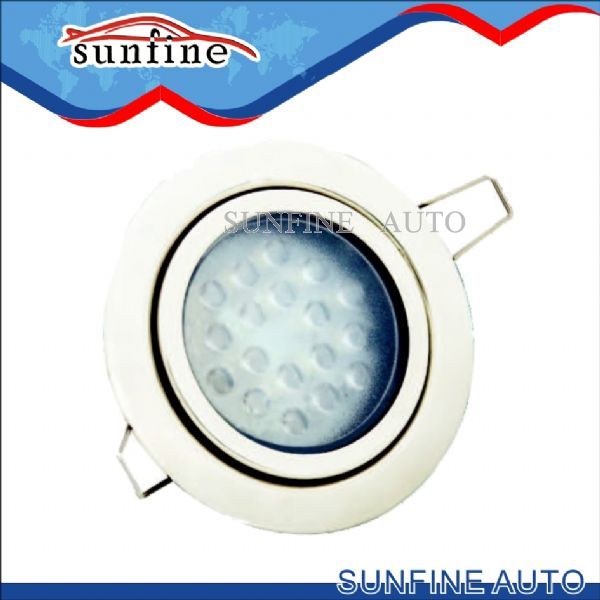

2"LED Down Light, Low Profile

2"LED Down Light, Low Profile
* Low Profile LED Down light is particularly suitable for applications where the depth of cut-out hole is limited,
ideal for cabin and compartment
* Highly polished 304 stainless steel, TiN (Titanium Nitrite) plated brass, or white powder coated aluminum
down light with frosted plastic lens. Lens is designed to vastly distribute the light illuminated from white LEDs
* Circuit board completely sealed in silicone to resist water, corrosion and vibration
* Lighting color available in Cool White and Warm White
* New introduction of SMD LEDs for this light, much brighter!
* Rated for 12V, tested to 13.8V

SF No.Finish Input Light ColorNo. ofLED TypeCurrentLuminous

            Voltage            LEDs       Draw at         Intensity

SFA40170-1 Stainless  12 V Cool White 18 5 mm 120 mA 90 lm
SFA40170-2 Stainless  12 V Warm White 18 5 mm 120 mA 72 lm
SFA40170-3 Stainless  12 V Netural White 9 SMD 5050 150 mA 120 lm
SFA40170-10 Stainless 12 V Blue 18 SMD 5050 150 mA
SFA40170-11 Stainless 12 V Red 18 SMD 5050 150 mA
SFA40170-12 Stainless 12 V Netural White 9 SMD 2835 170 mA 190 lm
SFA40170-13 Stainless 12 V Blue 18 SMD 2835 360 mA
SFA40170-14 Stainless 12 V Red 18 SMD 2835 360 mA
