Product Desprtion:

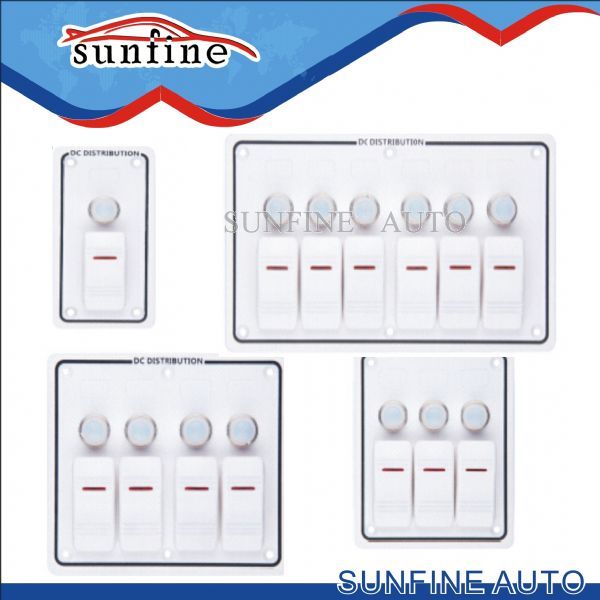

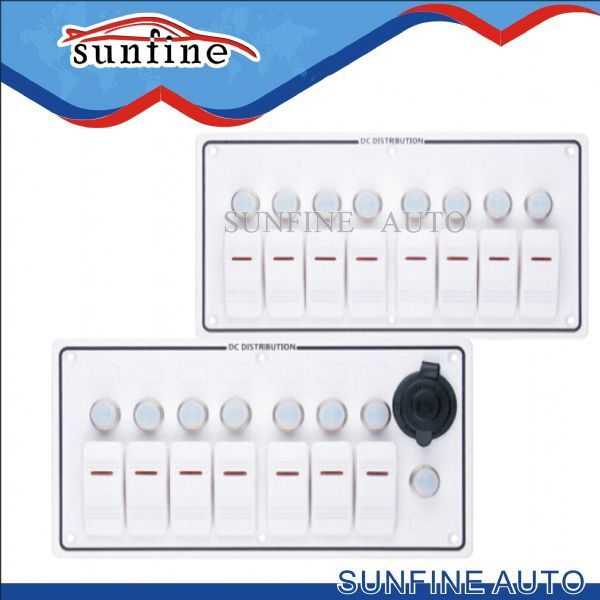

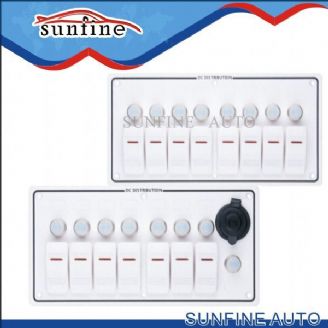

Rocker Switch Panel 12V / 24V  Aluminum / Horizontal / Breakers / White Panel

Waterproof IP68



With Accessories:

Rocker Switch SF50706-1-3P ON-OFF, SPST,3Pin,1LED

45 Indication Label

Stainless Steel Screw

Nitrile Rubber Gasket 2mm

Electric Wirinng UL / 1015

NO. SPEICIFICATION DESCRIPTION QUANTITY PRICES BASKET
SFA50760-1HW 1* Switch

Circuit Breakers: 5A*0 10A*1 15A *0


 Panel Width: 57mm/2.24inch Height:114.5mm/4.51inch Panel Hole:25mm/0.98inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-3HW 3* Switch

Circuit Breakers: 5A*1 10A*1 15A *1
 Panel Width: 96mm/3.78inch Height:114.5mm/4.51inch Panel Hole:72mm/2.83inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-4HW 4* Switch

Circuit Breakers: 5A*2 10A*1 15A *1		 Panel Width: 133.5mm/5.26inch Height:114.5mm/4.51inch Panel Hole:102mm/4.02inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-6HW 6* Switch

Circuit Breakers: 5A*3 10A*2 15A *1		 Panel Width: 190.5mm/7.5inch Height:114.5mm/4.51inch Panel Hole:152mm/5.98inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-8HW 8* Switch

Circuit Breakers: 5A*4 10A*2 15A *2		 Panel Width: 240mm/9.49inch Height:114.5mm/4.51inch Panel Hole:202mm/7.95inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-5HSW 5* Switch

Circuit Breakers: 5A*3 10A*2 15A *1

Power Socket		 Panel Width: 190.5mm/7.5inch Height:114.5mm/4.51inch Panel Hole:163mm/6.42inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-5HUW 5* Switch

Circuit Breakers: 5A*3 10A*2 15A *1

2 Port USB Socket		 Panel Width: 190.5mm/7.5inch Height:114.5mm/4.51inch Panel Hole:163mm/6.42inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-5HCW 5* Switch

Circuit Breakers: 5A*3 10A*2 15A *1

Cigarette Socket		 Panel Width: 190.5mm/7.5inch Height:114.5mm/4.51inch Panel Hole:163mm/6.42inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-5HVW 5* Switch

Circuit Breakers: 5A*3 10A*1 15A *1

Voltmeter Socket		 Panel Width: 190.5mm/7.5inch Height:114.5mm/4.51inch Panel Hole:163mm/6.42inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-7HSW 7* Switch

Circuit Breakers: 5A*4 10A*2 15A *2

Power USB Socket		 Panel Width: 240mm/9.49inch Height:114.5mm/4.51inch Panel Hole:212mm/8.35inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-7HUW 7* Switch

Circuit Breakers: 5A*4 10A*2 15A *2

2 Ports USB Socket		 Panel Width: 240mm/9.49inch Height:114.5mm/4.51inch Panel Hole:212mm/8.35inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-7HCW 7* Switch

Circuit Breakers: 5A*4 10A*2 15A *2

Cigarette Socket		 Panel Width: 240mm/9.49inch Height:114.5mm/4.51inch Panel Hole:212mm/8.35inch Height:86mm/3.39inch Sign In or Join Free
SFA50760-7HVW 7* Switch

Circuit Breakers: 5A*4 10A*2 15A *1

Cigarette Socket		 Panel Width: 240mm/9.49inch Height:114.5mm/4.51inch Panel Hole:212mm/8.35inch Height:86mm/3.39inch Sign In or Join Free
