Product Desprtion:

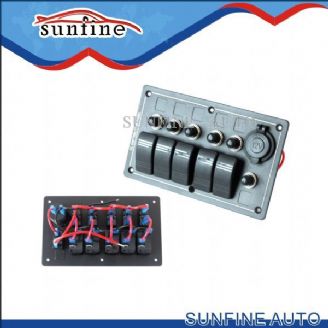

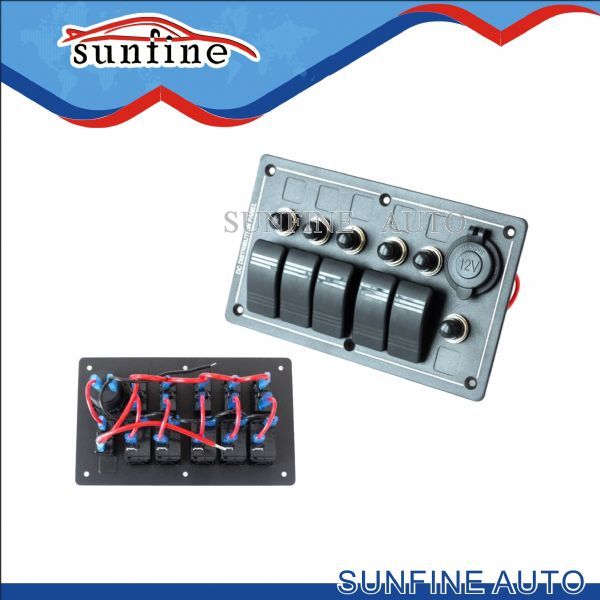

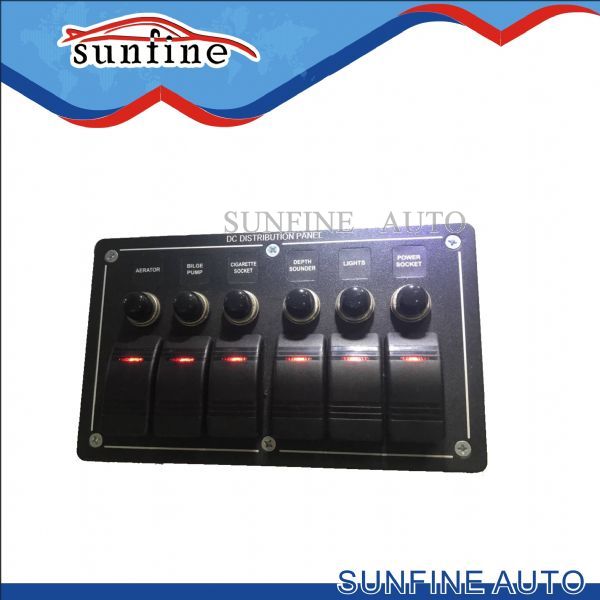

Rocker Switch Panel 12V/24V  Aluminum / Horizontal / Fuse Holders     Waterproof IP68

With Accessories:

Rocker Switch SF50706-1-3P ON-OFF, SPST,3PIN, 1Led

Stainless Steel Screw

Nitrile Rubber Gasket 2mm

45 Indication Label

Electric Wiring   UL/1025

NO. SPEICIFICATION DESCRIPTION QUANTITY PRICES BASKET
SFA50758-1H 1*Switch

Fuse Holders; 5A*0, 10A*1, 15A*0		 Panel Width:57mm/2.24inch Height:114.5mm/4.51inch Hole Width:25mm/0.98inch Height:86mm/3.39inch Sign In or Join Free
SFA50758-3H 3*Switch

Fuse Holders; 5A*1, 10A*1, 15A*1		 Panel Width:96mm/3.78inch Height:114.5mm/4.51inch Hole Width:72mm/2.83inch Height:86mm/3.39inch Sign In or Join Free
SFA50758-4H 4*Switch

Fuse Holders; 5A*2, 10A*1, 15A*1		 anel Width:133.5mm/5.26inch Height:114.5mm/4.51inch Hole Width:102mm/4.02inch Height:86mm/3.39inch Sign In or Join Free
SFA50758-6H 6*Switch

Fuse Holders; 5A*3, 10A*2, 15A*1		 Panel Width:190.5mm/7.5inch Height:114.5mm/4.51inch Hole Width:152mm/5.98inch Height:86mm/3.39inch Sign In or Join Free
SFA50758-8H 8*Switch

Fuse Holders; 5A*4, 10A*2, 15A*2		 Width:240mm/9.49inch Height:114.5mm/4.51inch Hole Width:202mm/7.95inch Height:86mm/3.39inch Sign In or Join Free
