LED Down Light Recessed MounT

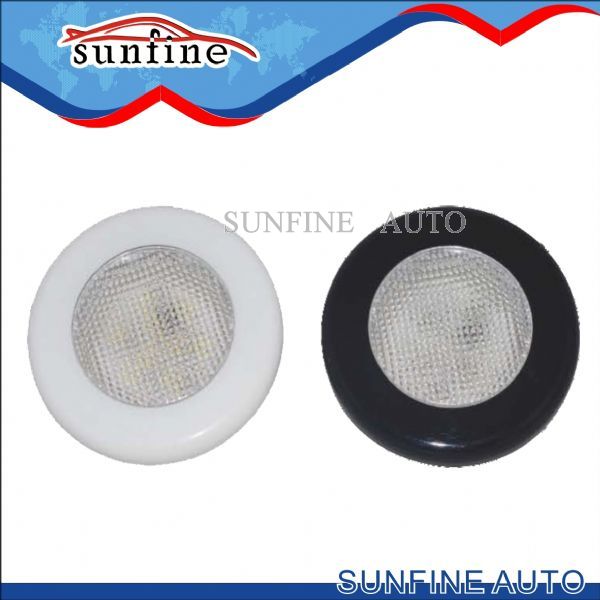

6"LED Down Light Recessed Mount, Low Profile
* Newly designed Low Profile LED Down light is particularly ideal for applications where the depth of
cut-out hole is limited, great for vehicle and boat interior use.
* Highly polished 304 stainless steel, TiN (Titanium Nitrite) plated over brass, or white powder coated aluminum finishes.
* Clear PC Lens featured with StarView lens pattern is uniquely designed to vastly distribute the lighting
illuminated from white LEDs to a wide beam angle of no less than 120
* Circuit board coated with conformal coating to resist moisture, corrosion and vibration
* Super flux (P4) type LEDs, super bright, long life span up to 100,000hours
* Lighting color available in Warm White, Color Temperature: 4,000~4,500K
* Rated for 12V, tested to 13.8V

SF No.FinishInputLightingColorNo. ofLEDsLEDTypeCurrentDrawat Luminous Intensity

SFA41227-1 Chromed    Warm White 12 V 9 SMD 3528 50 mA 55 lm
SFA41227-2 Black Ring Warm White 12 V 9 SMD 3528 50 mA 55 lm
SFA41227-3 White Ring Warm White 12 V 9 SMD 3528 50 mA 55 lm
SFA41227-4 Chromed    Blue       12 V 9 SMD 3528 50 mA 18 lm
SFA41227-5 Black Ring Blue       12 V 9 SMD 3528 50 mA 18 lm
SFA41227-6 White Ring Blue       12 V 9 SMD 3528 50 mA 18 lm
SFA41227-7 Chromed    Red        12 V 9 SMD 3528 50 mA 18 lm
SFA41227-8 Black Ring Red        12 V 9 SMD 3528 50 mA 18 lm
SFA41227-9 White Ring Red        12 V 9 SMD 3528 50 mA 18 lm
